How a Car Differential Works: A Comprehensive Guide

How a Car Differential Works: A Comprehensive Guide

The differential is one of the most critical components in a vehicle’s drivetrain, ensuring smooth and efficient turning while maintaining stability. Despite its fundamental role, the differential is often overlooked by drivers. Understanding how a differential works not only helps in appreciating the mechanics of a car but also provides insight into maintaining the vehicle better.

In this article, we will dive into the working principles of a car differential, explore different types of differentials, and discuss the benefits and challenges of each type. We’ll also touch on the importance of maintaining the differential for optimal vehicle performance.

---

1. Basic Function of a Differential

A car differential allows the wheels on the same axle to rotate at different speeds. This capability is essential when a vehicle turns, as the inner wheels travel a shorter distance than the outer wheels. Without a differential, the wheels would be forced to rotate at the same speed, resulting in severe tire wear, poor handling, and potential damage to the drivetrain.

When a car is moving straight, both wheels on an axle rotate at the same speed. However, during a turn, the outer wheels cover more ground, requiring them to rotate faster than the inner wheels. The differential ensures that power from the engine is distributed to the wheels while allowing them to turn at different speeds, enhancing stability and reducing strain on the tires and axle.

---

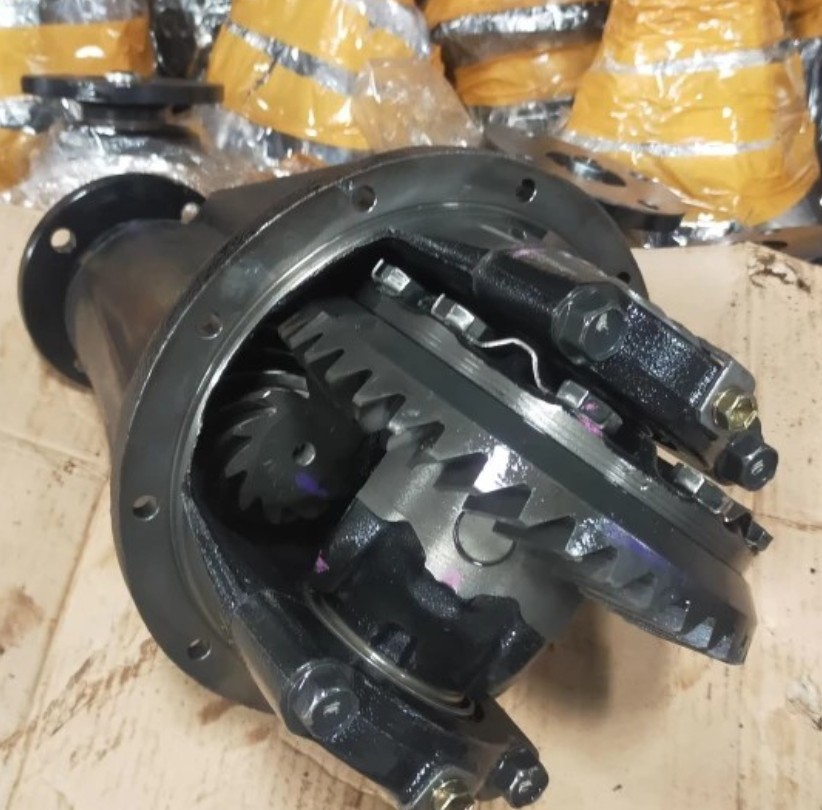

2. Key Components of a Differential

To understand how a differential works, it's crucial to recognize its primary components. These include:

• Ring Gear: This is a large gear connected to the drive shaft. It receives power from the engine and transmits it to the other gears within the differential.
• Pinion Gear: This small gear is attached to the drive shaft and meshes with the ring gear, helping to transfer power into the differential.
• Spider Gears: These are smaller gears that interact with the side gears and allow the two wheels on the same axle to rotate independently.
• Side Gears: These are connected to the axle shafts and transmit power to the wheels. They are responsible for rotating the wheels at different speeds during a turn.
• Differential Housing: The housing encases the gears and other components, providing protection and support.

The interaction between these gears allows the differential to balance torque and rotation speed between the left and right wheels, maintaining vehicle stability and smoothness during turns.

---

3. Working Principle: How the Differential Operates

At its core, the differential uses a series of gears to split the engine's torque, allowing the wheels to rotate at different speeds. Here’s a step-by-step breakdown of how it operates:

• Power Transmission: The engine's power is transmitted to the driveshaft, which rotates the pinion gear. The pinion gear is meshed with the ring gear, turning it. This motion transfers the engine's power into the differential assembly.
• Equal Speed During Straight Movement: When the vehicle is moving straight, the spider gears remain stationary relative to the differential case. The power is evenly distributed to both side gears, causing both wheels to rotate at the same speed.
• Differing Wheel Speeds During Turns: When the car turns, the spider gears rotate, allowing the side gears to turn at different speeds. The wheel on the outside of the turn travels a greater distance and therefore needs to rotate faster, while the inner wheel rotates slower. The spider gears adjust the power distribution to account for this difference.

This process ensures smooth cornering, reducing wear and tear on tires and the drivetrain.

---

4. Types of Differentials

There are several types of differentials, each designed to perform in different driving conditions. Here’s a look at the most common types:

---

a) Open Differential

An open differential is the most basic type and is commonly used in everyday passenger vehicles. It splits torque evenly between the two wheels on an axle, allowing each to rotate at different speeds.

• Advantages:
  • Simple design and cost-effective.
  • Provides smooth handling during turns.
• Disadvantages:
  • Poor performance in low-traction conditions (e.g., snow, mud, or ice). When one wheel loses traction, it receives all the torque, leaving the other wheel with none, causing the vehicle to get stuck.

---

b) Limited-Slip Differential (LSD)

A limited-slip differential improves upon the open differential by limiting the speed difference between the two wheels. It uses clutches or gears to detect when one wheel is slipping and redirects torque to the wheel with more traction.

• Advantages:

  • Better performance in low-traction conditions.
  • Enhances stability during high-speed cornering.

• Disadvantages:

  • More complex and expensive than an open differential.
  • Increased wear on the clutch plates over time.

---

c) Locking Differential

A locking differential can lock both wheels on an axle together, forcing them to rotate at the same speed. This feature is useful in off-road conditions where maintaining equal power to both wheels is essential for traction.

• Advantages:

  • Excellent off-road performance.
  • Can be manually or automatically activated.

• Disadvantages:

  • Not ideal for regular road use, as it can lead to difficult handling during turns.
  • Prone to additional wear and tear due to the mechanical locking mechanism.

---

d) Torque-Vectoring Differential

Torque-vectoring differentials are among the most advanced and are often found in high-performance and all-wheel-drive vehicles. They use sensors and electronic controls to actively distribute torque between wheels for optimal performance.

• Advantages:

  • Superior handling and cornering performance.
  • Improves vehicle stability and traction under varying conditions.

• Disadvantages:

  • High cost due to its complexity.
  • Requires advanced maintenance and servicing.

---

5. Maintaining a Differential

Proper maintenance of the differential is crucial for ensuring the vehicle’s longevity and performance. Some key maintenance tips include:

• Regular Fluid Changes: Differential fluid lubricates the gears and helps dissipate heat. Over time, the fluid can become contaminated or degrade, leading to increased wear. It’s essential to replace the fluid according to the vehicle manufacturer’s recommendations.
• Checking for Leaks: A differential fluid leak can lead to inadequate lubrication, which can cause severe damage. Regularly inspect the differential housing and surrounding areas for signs of leakage.
• Listening for Unusual Noises: Grinding or whining noises from the differential area could indicate issues with the gears or bearings. If such noises are heard, it’s important to get the differential inspected by a professional mechanic.
• Addressing Handling Issues: If the vehicle feels unstable during turns or if there is excessive tire wear, it may indicate a problem with the differential. Early diagnosis and repair can prevent further damage.

---

6. Conclusion

The differential plays a vital role in vehicle performance by allowing wheels to rotate at different speeds, ensuring smooth and safe turns. While the basic open differential is effective for standard driving conditions, more advanced types like the limited-slip, locking, and torque-vectoring differentials offer enhanced performance under challenging conditions.

Regular maintenance, such as fluid changes and leak inspections, is essential to ensure the longevity and proper functioning of the differential. Understanding how the differential works and keeping it in good condition will help you enjoy better vehicle handling and avoid costly repairs in the long run.

By learning about the differential, drivers can gain a deeper appreciation of their vehicle’s engineering and mechanics, leading to more informed maintenance and smoother driving experiences.
